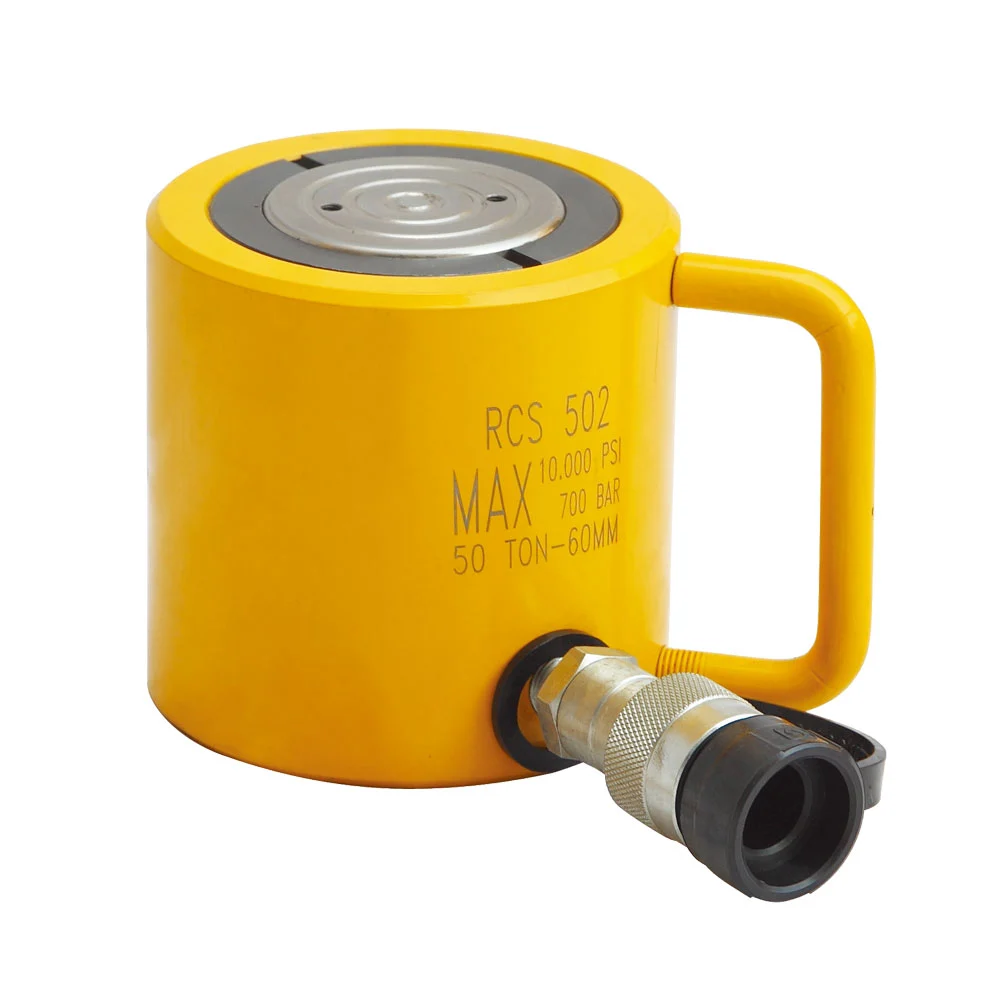

RCS Series, Pancake Hydraulic Cylinders
Pullertop RCS pancake hydraulic cylinders come with a capacity range from 5 tons to 150 tons and is an ideal tool for lifting operations in confined spaces.
Product Description
Series: RCS Series
Product Lines: Low Height Hydraulic Cylinders
- Lightweight, low-profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

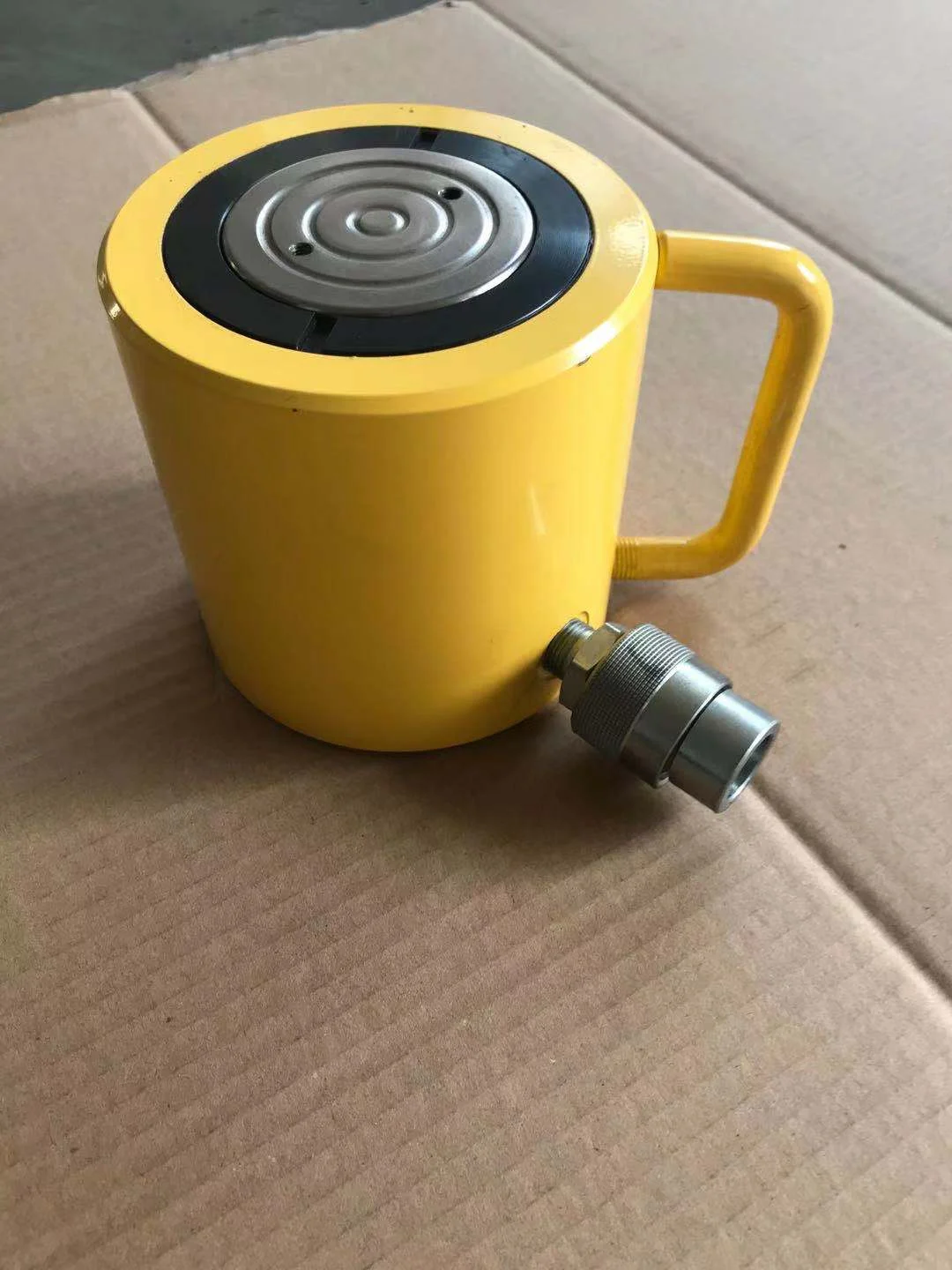

Product Picture
Series Specifications
| Capacity: | 5-150 Ton |
| Stroke: | 24-62mm |
| Collapsed Height: | 67-162mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 0.98-38Kg |

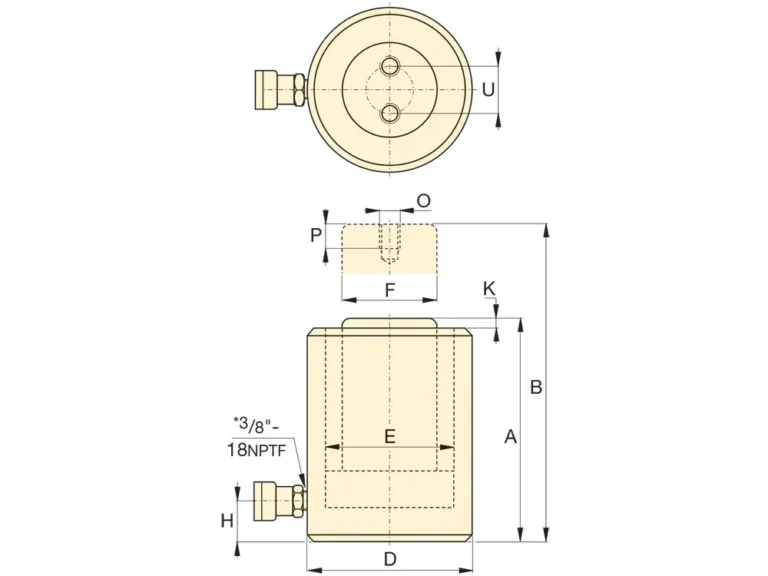

Dimension
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Collapsed Height/mm | Cylinder Dia/mm | Piston Dia/mm | Oil Capacity/cm3 | Weight/Kg |
|---|---|---|---|---|---|---|---|
| RCS51 | 5 | 24 | 67 | 48 | 25 | 15 | 0.98 |
| RCS101 | 10 | 38 | 88 | 69 | 38.1 | 55 | 4.1 |
| RCS201 | 20 | 45 | 98 | 92 | 50.8 | 129 | 5 |
| RCS302 | 30 | 62 | 117 | 101 | 66.5 | 261 | 6.8 |
| RCS502 | 50 | 60 | 122 | 124 | 69.8 | 373 | 10.9 |
| RCS1002 | 100 | 57 | 141 | 165 | 92.2 | 722 | 22.7 |
| RCS1502 | 150 | 51 | 162 | 205 | 114 | 900 | 38 |
