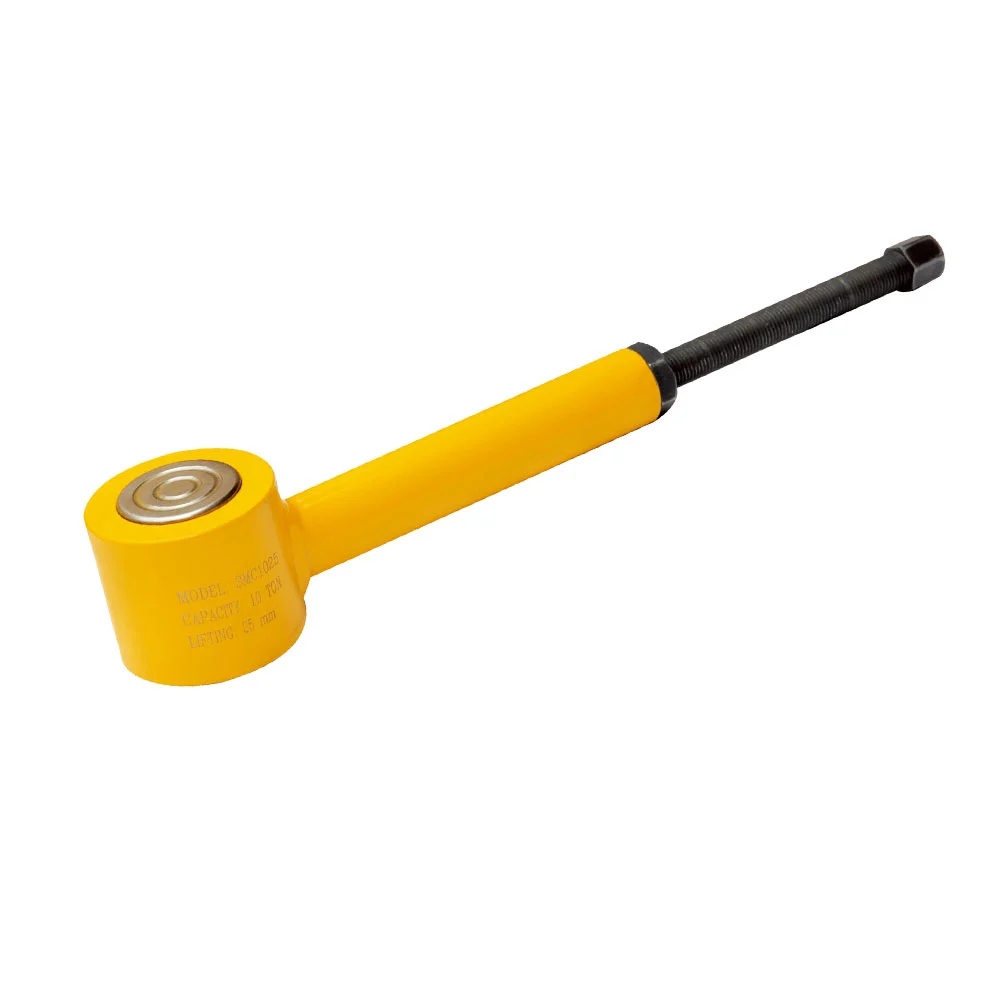

SMC Series, Mechanical Hydraulic Cylinders
Pullertop SMC series mechanical hydraulic cylinder comes with a built-in screw-driven hydraulic pump and features a flat design for use in narrow spaces. The capacity range is up to 50 tons and can achieve 0.01mm precision tunning operations.
Product Description
Series: SMC Series
Product Lines:Low Height Hydraulic Cylinders
- Flat design for use in confined areas where standard cylinders will not fit.
- Light, thin, short, and small versions for easy carrying and designed for use in all positions.
- Rising and retracing height can do trimming precisely and its accuracy is up to 0.01mm.
- Made in high-strength alloy steel to extend strength and life.
- Integral screw-rod designed hydraulic configuration without extra oil pumps and hoses.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

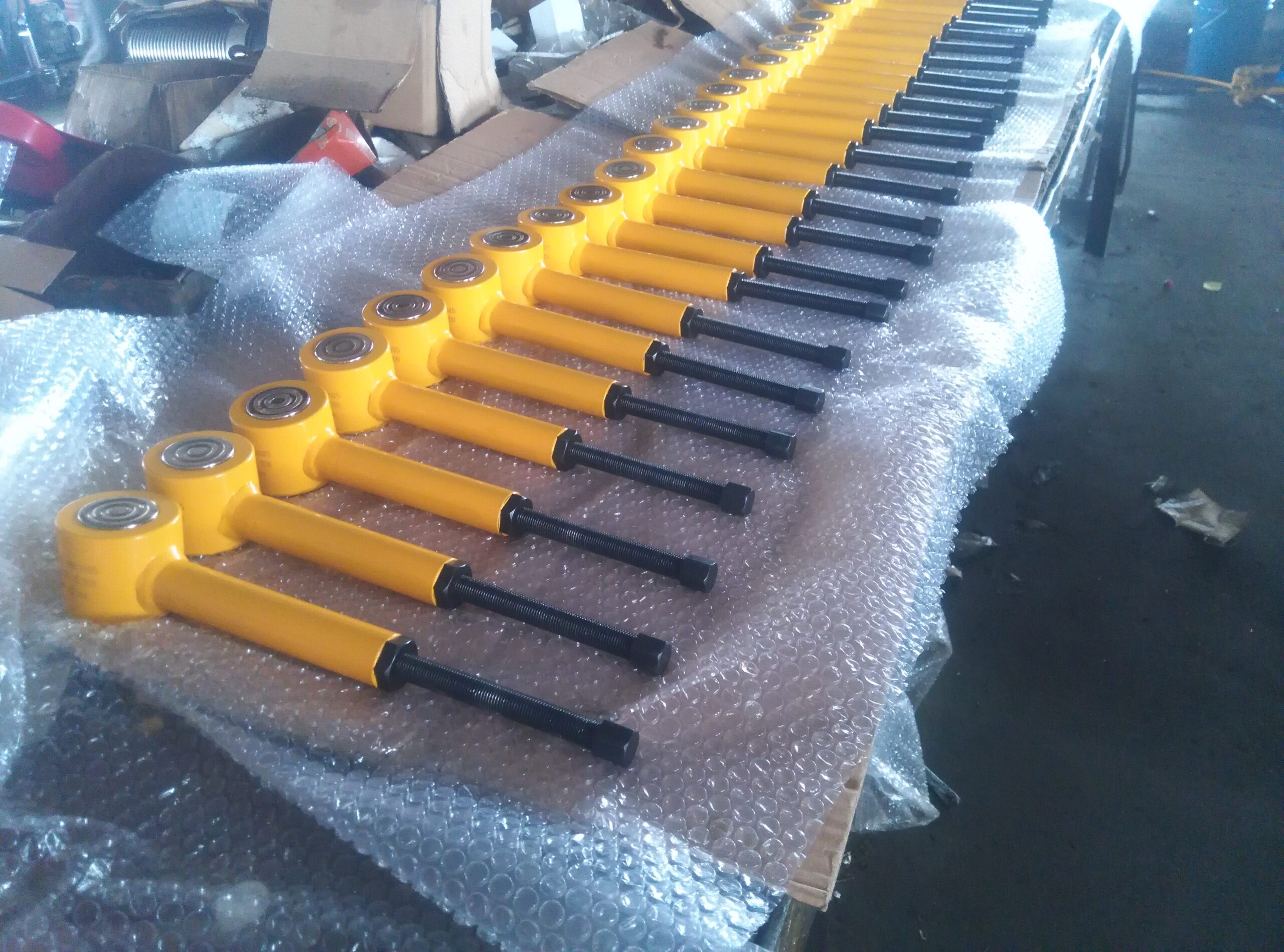

Product Picture
Series Specifications
| Capacity: | 5-50 Ton |
| Stroke: | 5-25mm |
| Collapsed Height: | 35-52mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 1.5-3.7Kg |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Collapsed Height/mm | Cylinder Dia/mm | Weight/Kg |
|---|---|---|---|---|---|
| SMC0525 | 5 | 25 | 52 | 52 | 1.5 |
| SMC1025 | 10 | 25 | 54 | 62 | 2.2 |
| SMC2005 | 20 | 5 | 35 | 84 | 1.9 |
| SMC3005 | 30 | 5 | 36 | 95 | 2.3 |
| SMC5005 | 50 | 5 | 40 | 120 | 3.7 |
