Ultra Flat Hydraulic Cylinder
CULP-Series Low Profile Hydraulic Pancake Cylinders are ulta-flat, single-acting load return and include a stop ring to limit the maximum stroke. All models are finished with a nitrocarburized coating for enhanced durability and corrosion protection in harsh working environments.
Product Description
Series: CULP
Product Lines: Hydraulic Cylinders
•CULP-Series Low Height Hydraulic Cylinders, also known as hydraulic pancake cylinders, offer an impressive power to height ratio, making them the right choice for confined spaces where other cylinders will not fit.
•There are several configurations to choose from, with tonnage capacities ranging from 10 to 100 imperial tons (97-1077 kN), and collapsed heights from 1.08 – 2.55″ (27.5 – 65mm).
•Stop-ring for maximum stroke limitation
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
| Capacity | 10-100 Ton |
| Max Working Pressure | 70Mpa |
| Collapsed Height | 27.5-65mm |
| Stroke | 6mm |
| Extended Height | 33.5-71mm |
| Return Type | Single Acting, Load Return |
| Surface Treatment | Nitrocarburized Surface Treatment |

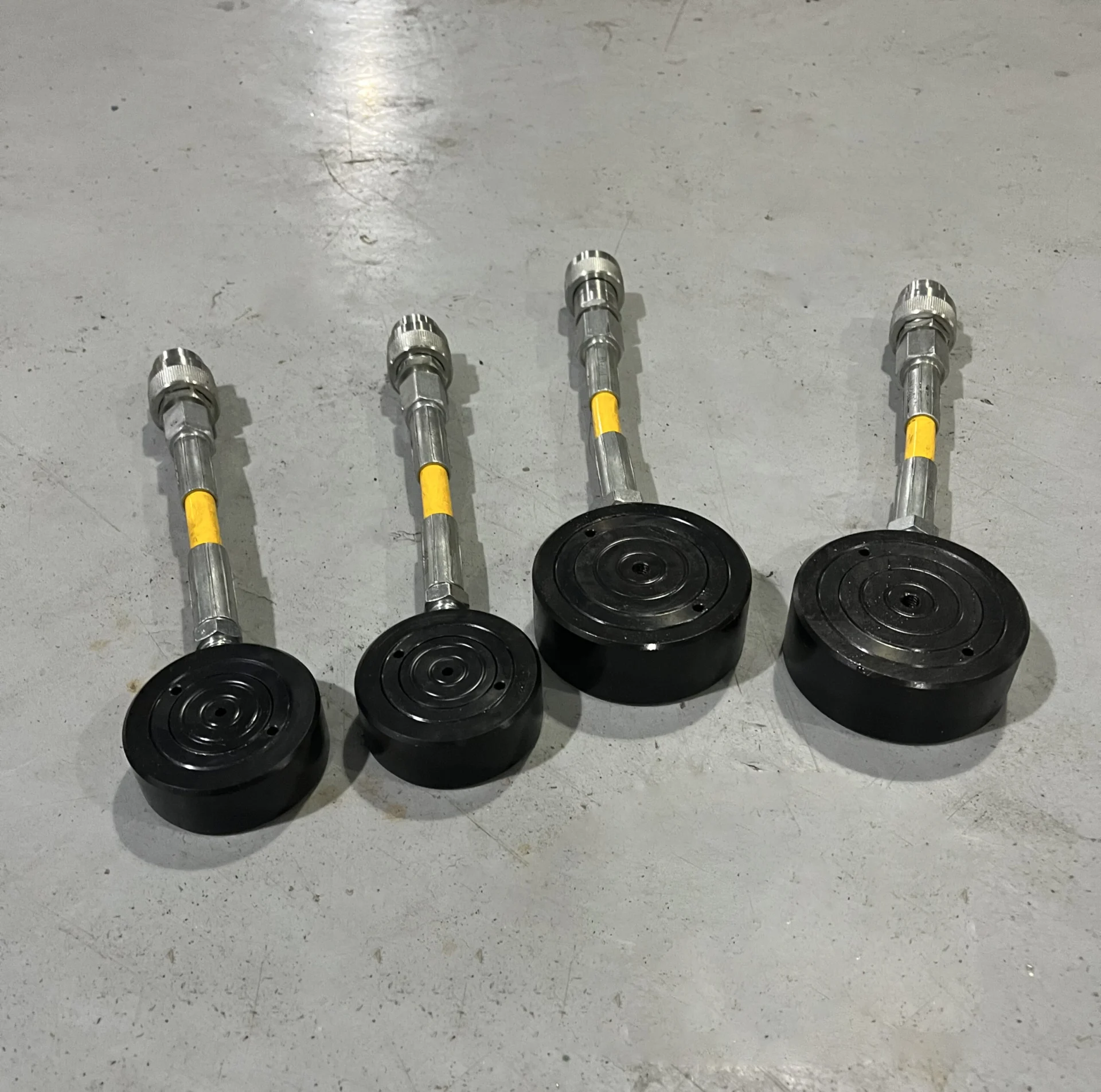

Product Picture
Series Comparison
| Model | Capacity(T) | Lifting.(H)(mm) | Min.H(mm) | Cylinder Dia.（mm) | Piston Dia.(mm) | Weight(kg) |
|---|---|---|---|---|---|---|
| CULP10 | 10 | 6 | 27.5 | 72 | 38 | 1.5 |
| CULP20 | 20 | 6 | 32 | 90 | 55 | 2 |
| CULP30 | 30 | 6 | 35 | 105 | 67 | 2.8 |
| CULP50 | 50 | 6 | 44 | 140 | 90 | 6 |
| CULP100 | 100 | 6 | 65 | 195 | 125 | 11.5 |
