High Tonnage Ultra Flat Hydraulic Cylinder
CUSP-Series Low Profile Hydraulic Pancake Cylinders are ulta-flat, single-acting and load return. They include a tilting function to help evenly distribute the load. All models are finished with a nitrocarburized coating for enhanced durability and corrosion protection in harsh working environments.
Product Description
Series: CUSP
Product Lines: Hydraulic Cylinders
- Up to 4% side load of maximum capacity to evenly distribute the load
- Extremely low collapsed height
- Nitrocarburized surface treatment for harsh conditions
- “Red Line” for visual maximum stroke indication
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Series Specifications
| Capacity | 10-1000 Ton |
| Max Working Pressure | 70Mpa |
| Collapsed Height | 35.5-103mm |
| Stroke | 7-17mm |
| Return Type | Single Acting, Load Return |
| Surface Treatment | Nitrocarburized Surface Treatment |

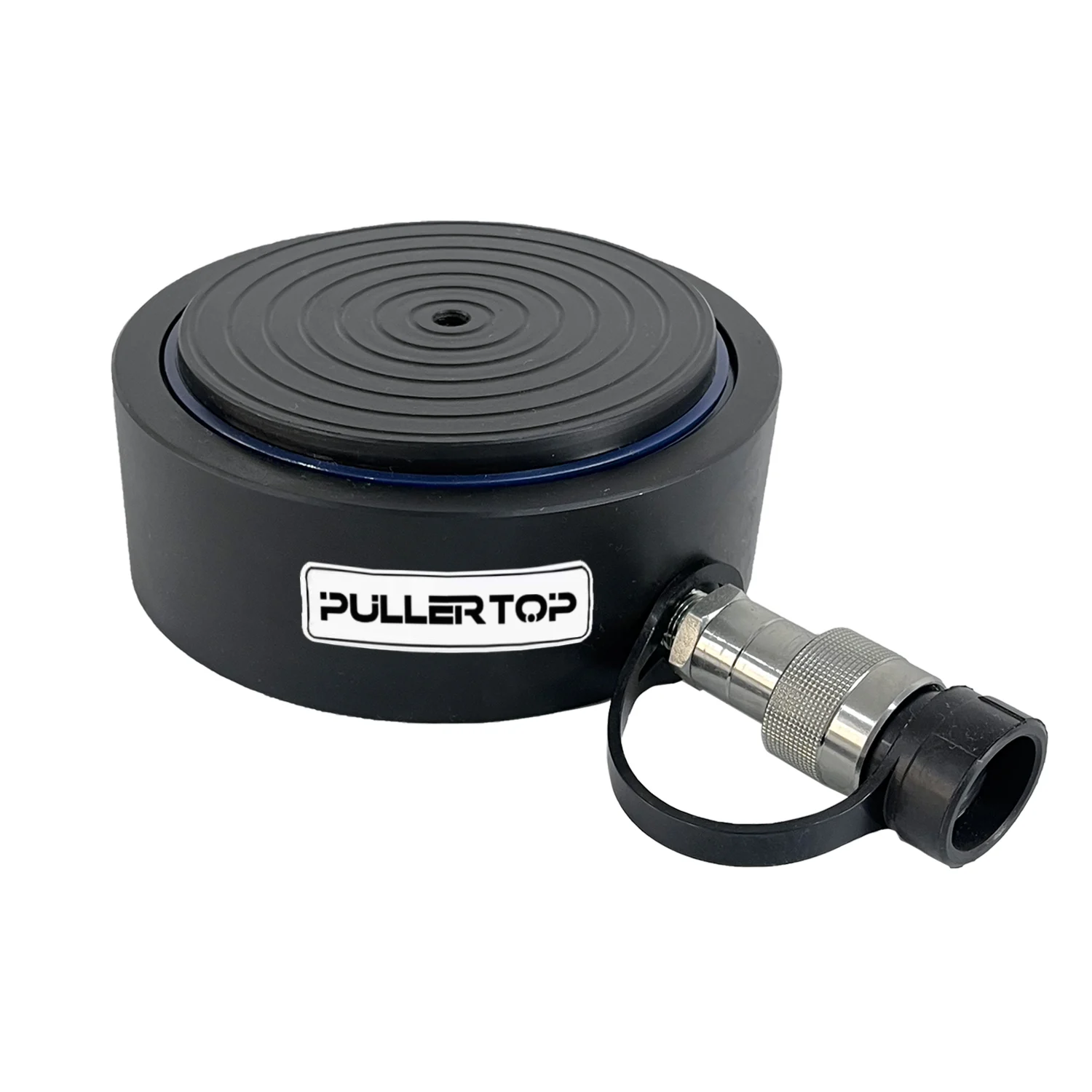

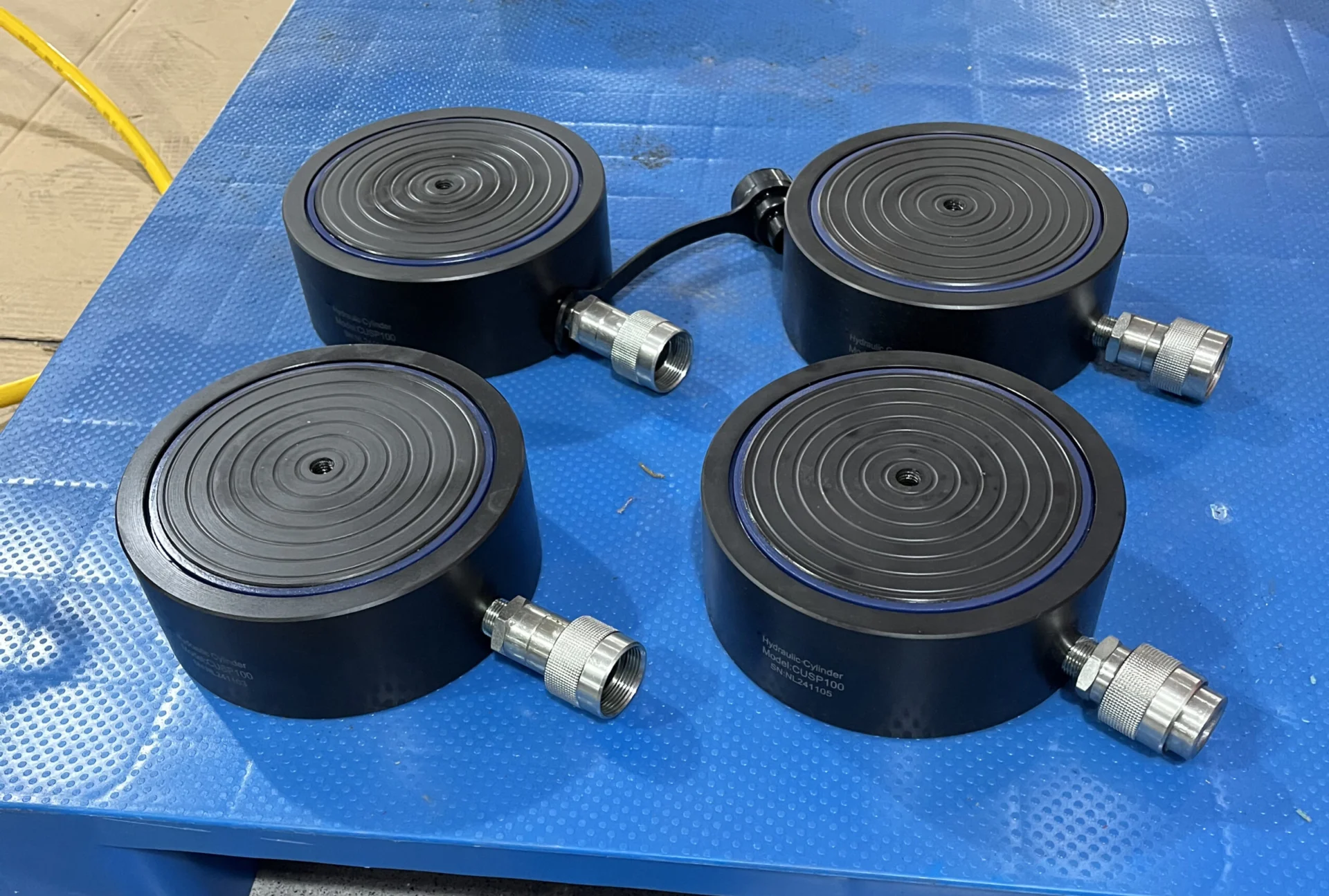

Product Picture
Series Comparison
| Model | Capacity(T) | Lifting.(H)(mm) | Min.H(mm) | Oil Capacity（cm³） | Cylinder Dia.(mm) | Piston Dia.(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| CUSP10 | 10 | 7 | 35.5 | 9 | 72 | 42 | 1.2 |
| CUSP20 | 20 | 7 | 40.5 | 20 | 90 | 60 | 2 |
| CUSP30 | 30 | 7 | 42.5 | 32 | 105 | 75 | 3 |
| CUSP50 | 50 | 13 | 57 | 104 | 130 | 100 | 6 |
| CUSP75 | 75 | 14 | 60.5 | 158 | 150 | 120 | 8 |
| CUSP100 | 100 | 15 | 63.5 | 226 | 170 | 140 | 11 |
| CUSP150 | 150 | 14 | 65 | 324 | 200 | 170 | 15 |
| CUSP200 | 200 | 15 | 69 | 446 | 229 | 195 | 21.5 |
| CUSP250 | 250 | 15.5 | 72.5 | 569 | 252 | 215 | 27 |
| CUSP300 | 300 | 14 | 72.5 | 637 | 282 | 240 | 34 |
| CUSP400 | 400 | 15 | 77.5 | 837 | 316 | 270 | 46 |
| CUSP500 | 500 | 15 | 82.5 | 1111 | 356 | 305 | 63 |
| CUSP600 | 600 | 16 | 87.5 | 1334 | 386 | 330 | 78 |
| CUSP750 | 750 | 16 | 93.5 | 1757 | 432 | 370 | 105 |
| CUSP1000 | 1000 | 17 | 103 | 2531 | 502 | 430 | 157 |
