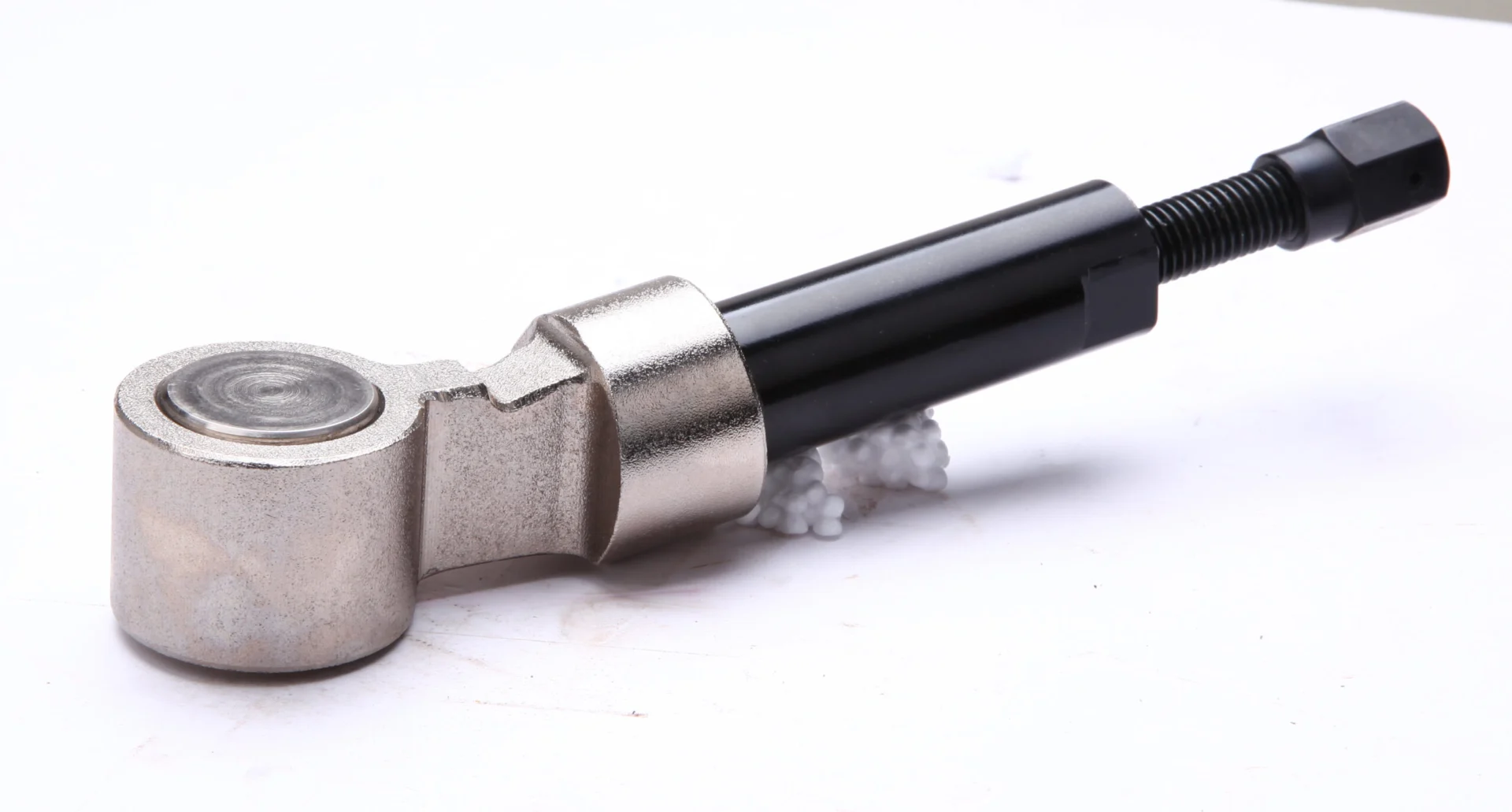

Mechanical Screw Jack
Pullertop mechanical hydraulic cylinder comes with a built-in screw-driven hydraulic pump and features a flat design for use in narrow spaces. The capacity range is up to 120 tons and can achieve 0.01mm precision tunning operations.
Product Description
Product Lines:Low Height Hydraulic Cylinders
- Lightweight, short and easy to carry
- The lifting height can be fine-tuned precisely, and the integrated screw hydraulic mechanism does not require an external oil pump
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Product Picture
Series Specifications
| Capacity: | 30-120 Ton |
| Stroke: | 5-15mm |
| Collapsed Height: | 36-105mm |
| Weight: | 2-9Kg |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Collapsed Height/mm | Piston Dia./mm | Hollow Dia/mm | Weight/Kg |
|---|---|---|---|---|---|---|
| U-33A | 30 | 5 | 36 | 33 | / | 2 |
| U-66A | 120 | 15 | 105 | 80 | 47 | 9 |
