Product Description
Series: RLS Series
Product Lines: Low Height Hydraulic Cylinders
- The standard domed piston rod(5-3 tons) or swivel cap(50-150 tons) minimizes the effects of side load.
- Couplers on all cylinders, except RLS50, are angled upward for extra clearance.
- Cylinder body, piston, and gland nut coated for corrosion and abrasion resistance.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

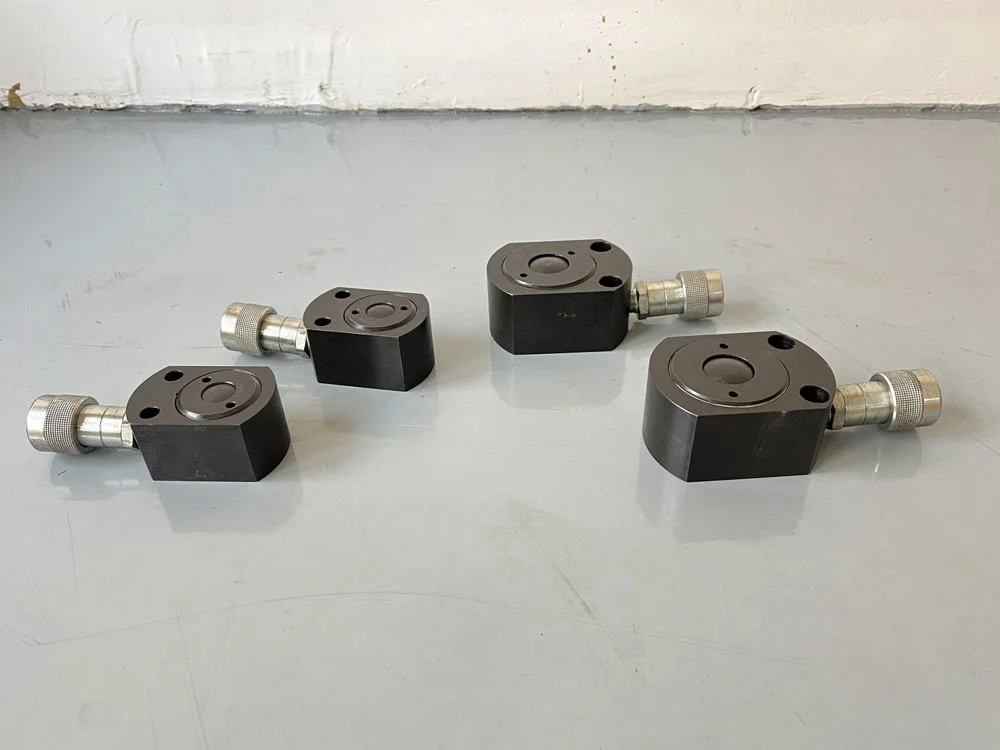

Product Picture
Series Specifications
| Capacity: | 5-150 Ton |
| Stroke: | 11.1-15.9mm |
| Collapsed Height: | 41.3-101.6mm |
| Maximum Operating Pressure : | 70Mpa |
| Weight: | 1-23.8Kg |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Collapsed Height/mm | Cylinder Dia/mm | Piston Dia/mm | Oil Capacity/cm3 | Weight/Kg |
|---|---|---|---|---|---|---|---|
| RLS50 | 5 | 14.3 | 41.3 | 41.3*65.1 | 15.9 | 10 | 1 |
| RLS100 | 10 | 11.1 | 44.5 | 55.6*82.6 | 19.1 | 17 | 1.5 |
| RLS200 | 20 | 11.1 | 50.8 | 76.2*101.6 | 28.6 | 33 | 2.5 |
| RLS300 | 30 | 12.7 | 58.7 | 95.3*114.3 | 34.9 | 53 | 3.9 |
| RLS500S | 50 | 15.9 | 66.7 | 114.3*139.7 | 44.5 | 99 | 6.3 |
| RLS750S | 75 | 15.9 | 79.4 | 140.5*165.1 | 54 | 163 | 10.6 |
| RLS1000S | 100 | 15.9 | 85.7 | 152.4*177.8 | 63.5 | 202 | 13.6 |
| RLS1500S | 150 | 14.3 | 101.6 | 190.5*215.9 | 76.2 | 282 | 23.8 |
