Hydraulic Pull Cylinders

Pullertop hydraulic pull cylinders are specially designed for applications that require a large pulling force. Our pull cylinders feature a single-acting design and are equipped with a replaceable clevis eye. All models’ pulling capacity range from 2.5-ton to 50-ton and are widely used in tensioning and pulling applications.

PRICE ON REQUEST
Download Catalog
Upload File

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Series: BRP/BRC Series

Product Lines: Hydraulic Pull Cylinders

  • High Strength Alloy Steel Structure

  • Plunger Blow-Out Protection To Prevent Rod Over-extension

  • Hard-chrome Plated Plunger Piston For Longer Service Life

  • Baked Enamel Finish For Increased Corrosion Resistance

  • Replaceable Links On BRP Models

  • Plunger Wiper Reduces Contamination, Extending Cylinder Life

  • Single Acting, Spring Return

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

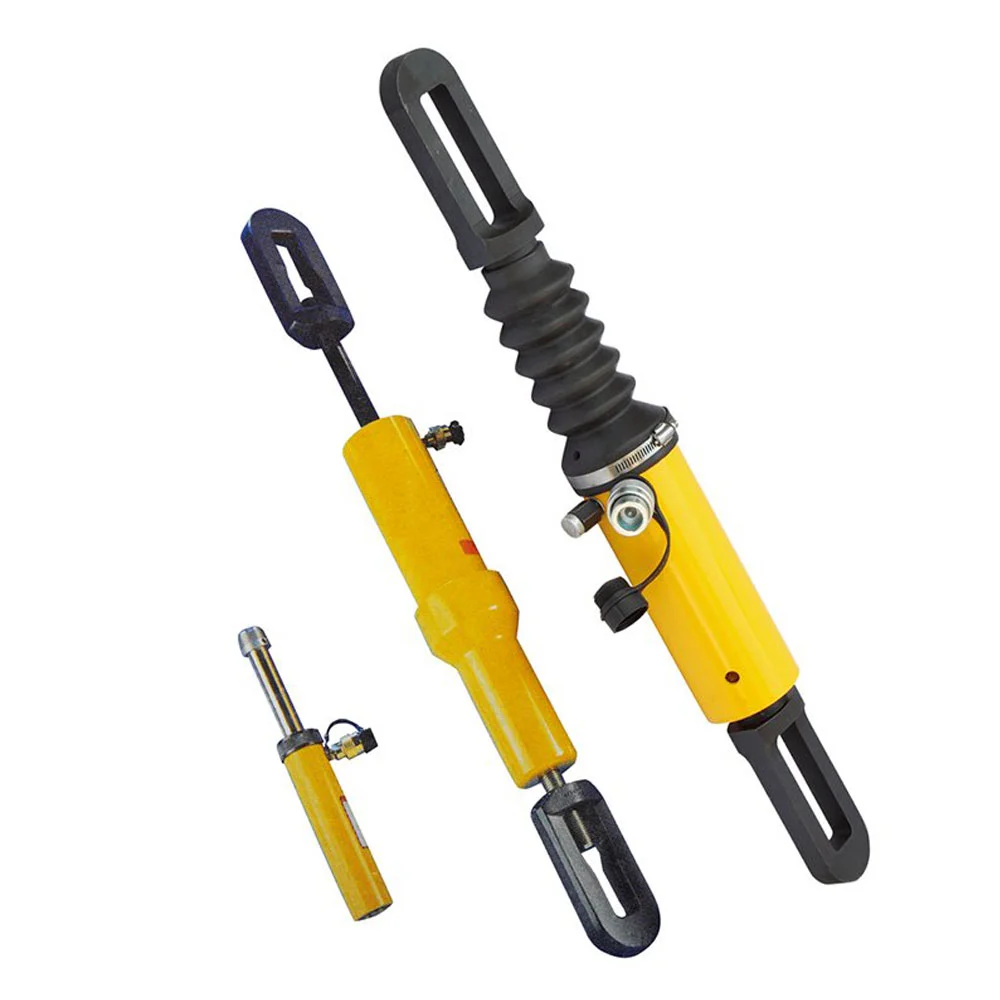

Product Picture

Hydraulic Pull Cylinders

Series Specifications

Capacity: 2.5-50 Ton
Stroke: 127-155mm
Collapsed Height: 264-1085mm
Maximum Operating Pressure : 70Mpa
Weight: 1.8-53.5Kg

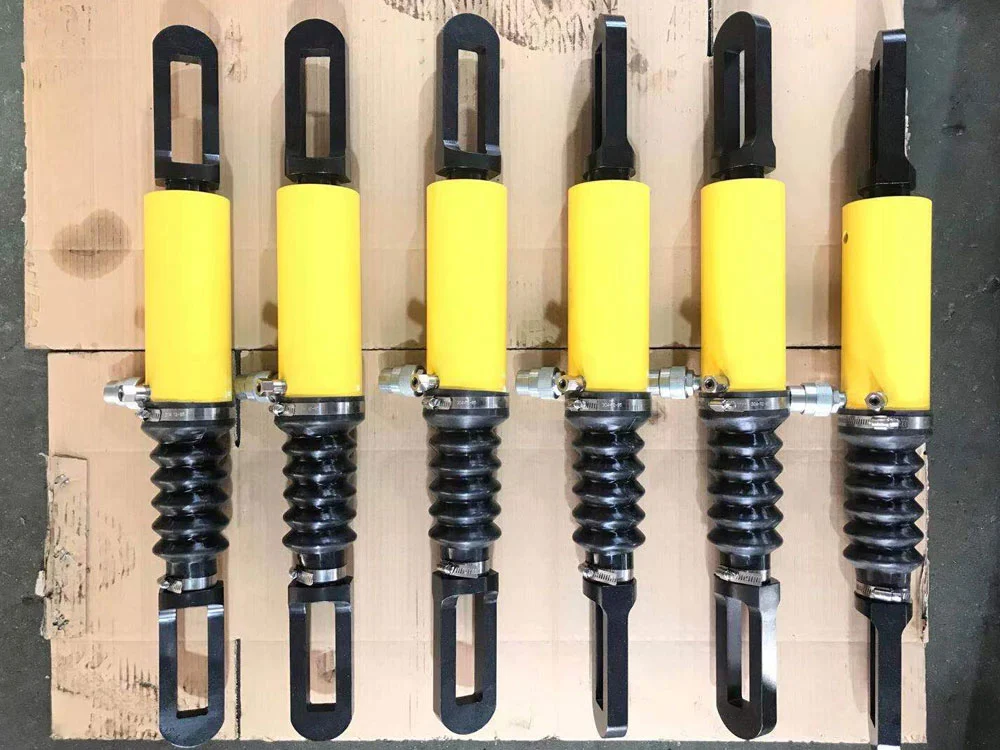

Product Picture

Series Comparison

Model Number Capacity/Ton Stroke/mm Cylinder Effective Area/cm2 Oil Capacity/cm3 Collapsed Height/mm(A) Extended Height/mm(B) Outside Dia/mm(D) Cylinder Bore Dia/mm(E) Plunger Dia/mm(F) Top To Inlet Port/mm(H) Dimension(J) Dimension L Dimension M Dimension N Dimension P Dimension Q Dimension T Base Mounting Holes Thread(V) Collar Thread(V) Collar Thread Length/mm(X) Base Mounting Holes Thread Length/mm(Z) Weight/Kg
BRC-25 2.5 127 3.5 45 264 391 48 28.4 19 45 3/4”-14 * * * 28 1 1/16”-24 * 3/4”-14NPT 1 1/2”-16UN 24 17 1.8
BRC-46 5 140 7.3 101 301 441 57 42.9 30.2 42 1 1/4”-11 1/2” * * * 32 1 3/16”-16 * 1 1/4”-11 1/2NPT 2 1/4”-14UN 26 24 4.5
BRC-106 10 151 15 228 289 440 85 54.1 31.8 39 * * * * 25 M30X2 * M30X2 M85X2 25 24 9.5
BRP-106C 10 151 15 227 587 738 85 54.1 * * 119 62 30 35 * * 32 * * * * 15.9
BRP-106L 10 151 15 227 541 692 85 54.1 * * 67 115 22 30 * * 32 * * * * 13.2
BRP-306 30 155 46.6 722 1085 1240 136 88.9 * * 114 145 35 39 * * 50 * * * * 48.1
BRP-606 50 152 72.1 1096 719 871 140 110 * * 130 149 39 50 * * 70 * * * * 53.5
