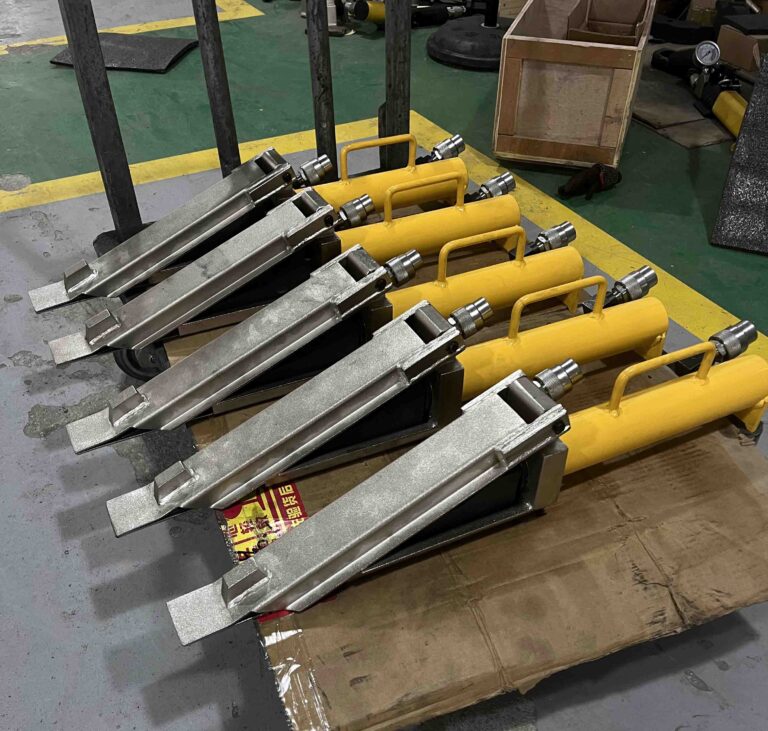

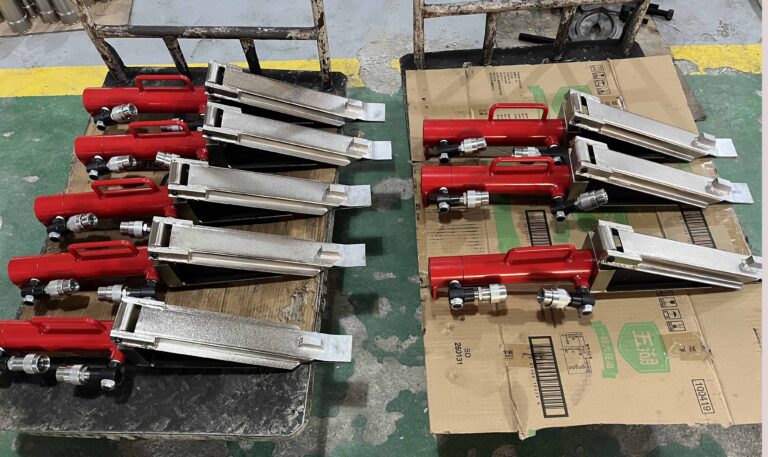

Hydraulic Vertical Lifting Wedge Set

Pullertop supplies full ranges of hydraulic flange spreaders, our flange spreader tools are normally used for separating flanges, widely being used in industrial applications such as pipeline maintenance, pipeline construction, testing and flange replacement, maintenance gaskets, pressure vessels, cylinder head opening, power plants, bearing disassembly, oil and electricity drilling, motor rotor disassembly, offshore platforms, jacking work, Shipbuilding, industrial equipment, horizontal movement of workpieces and so on. Tool selection is made on the basis of the access gap between the flange faces, the flange size, and the required scope of work.

PULLERTOP 2023 PRODUCTS BROCHURE

Product Description

Product Lines: Hydraulic Spreaders

Adjustable lateral movement, adjustable jacking by wedging at a minimum gap of 6mm.

Jacking operation: up to 34mm

Pushing operation: Different from the traditional wedge iron work, it can be smoothly pushed horizontally, because no reaction frame is required, and the efficiency of horizontal pushing work is improved.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Series Specifications

Maximum Operating Pressure (bar)	700
Maximum Lifting Force (ton)	15-35
Min. Height(mm)	6
Max. Height(mm)	34
Power Source	Split Hydraulic Power
Weight(Kg)	9-13

Series Comparison

Model	Cylinder Model	Capacity/Ton	Min. Height/mm	Max. Height/mm	Weight/Kg
KP-15	KPS-15X1	15	6	34	9
KP-35	KPS-35X1	35	6	34	13
